One of the first things I noticed after taking delivery of my 1982 Toyota pickup was that the steering stabilizer felt a bit tired. It simply wasn’t providing the damping that you want or expect with ball and joint steering linkage on a solid axle. The fluid leaking from the stabilizer was also a sign it had seen its better days.
There is no shortage of steering stabilizer options out there for these trucks, but my criteria narrowed the selection down to just a few options. First, in the spirit of this restoration, I wanted to maintain a factory OEM look. I also wanted to find one that did not require any adapters. And since the truck is running 31×10.50 tires, I didn’t need anything heavy duty. The Monroe Magnum Steering Stabilizer (SC2914) fit the criteria perfectly, and also came in at a reasonable price. I thought I’d swap it out when I had a few minutes.
Not so fast…

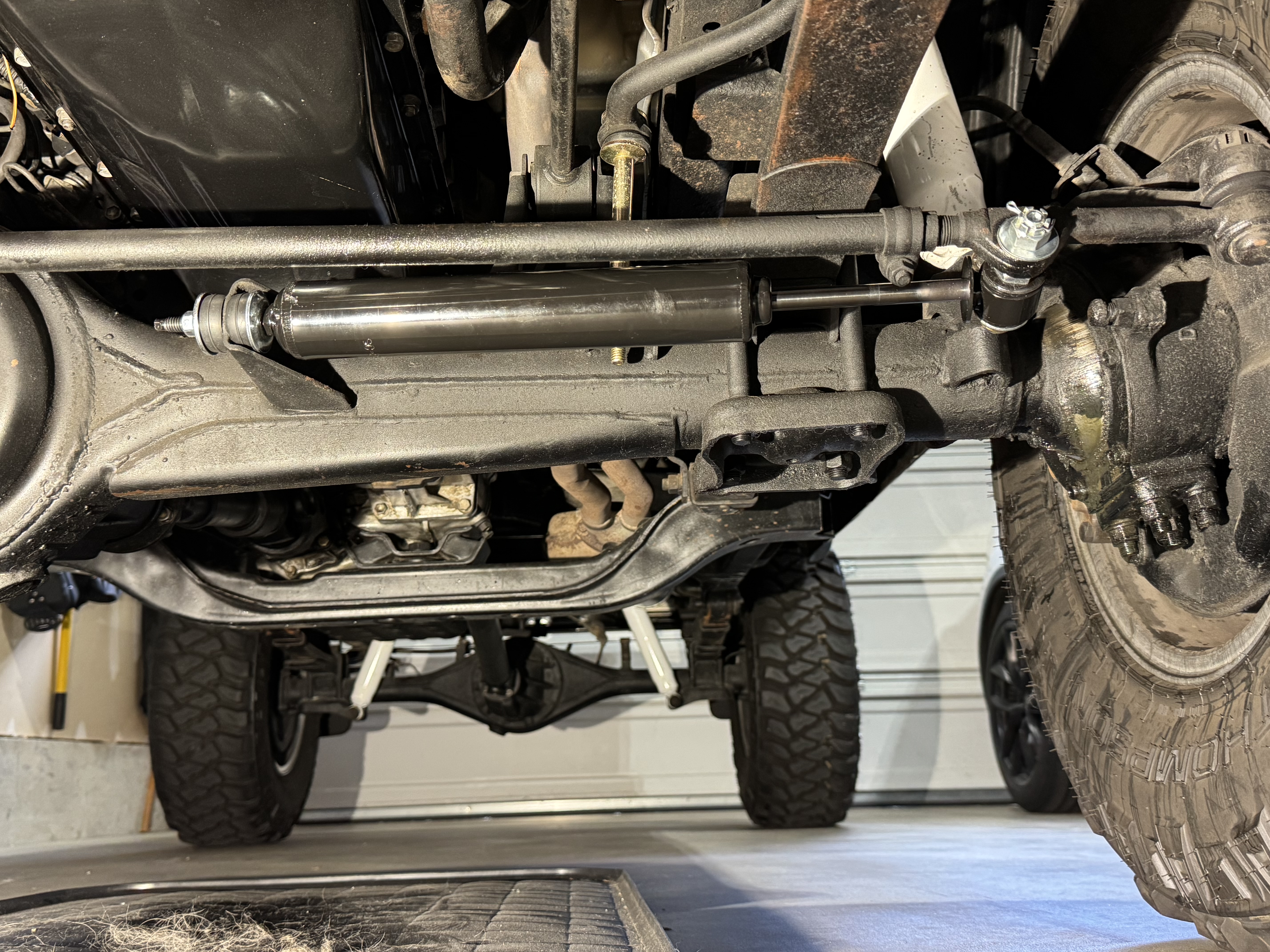

Heaven only knows how long the old stabilizer had been on the truck, which made this effort uncertain. The crux of matter was the tapered pin used to connect the driver’s side of the stabilizer to the steering linkage. After removing the nut and washer shown in the photo below, tapping with a hammer on this pin didn’t do anything, nor did a bit of heat on the linkage around the tapered stud.
The solution ended up being a Pitman arm puller combined with a hammer when under pressure. This approach allows you to not only apply a lot of steady-state pressure to the taper pin, but also to shock-load with a tap from a hammer. It is this combination that ends up being incredibly effective.
Once that was off, the new damper (not “dampener” folks) was installed and worked like a champ.
What’s not to love about a fix that is easy, fast (assuming you have the right tools), and under $50. Hope this helps!
– Pete
